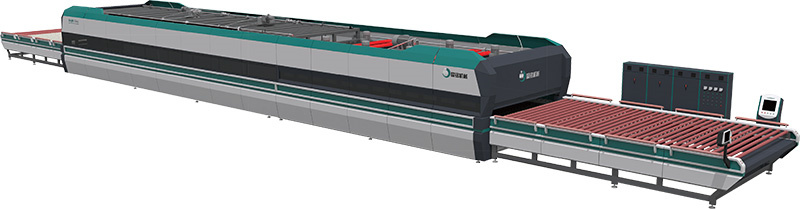

This product is based on the principle of convection heating, adopts the specially designed hot air circulation structure of high-temperature resistant convection fan, and applies a number of advanced technologies to make the glass heating faster, production efficiency and product quality greatly improved, especially in the processing of LOW-E glass.
Convection mode:
1. Top and bottom convection model:
The upper and lower extensions are used for forced convection heating, matrix heating is adopted, and the furnace temperature is intelligently controlled.
2. Upper convection mode:
The upper fan is used for forced convection hot air circulation, and matrix heating is adopted. Intelligent control of furnace temperature.
3. Double-chamber forced convection mode:
The working mode of double chamber heating is adopted, the preheating furnace adopts forced convection at the upper part, and the high temperature adopts radiation heating.
Main Purpose:
Designed for Low-E glass toughening, it can be used for high-quality glass such as home appliance glass, interior decoration, cars and boats, curtain walls, etc.
Main technical features:
- The specially designed high temperature resistant convection fan has more stable and reliable high temperature performance and excellent convection effect;
- The advanced convection circulation structure makes the glass heating faster, more evenly heated, stronger processing capacity, higher efficiency, and better energy-saving effect;
- The convection fan is controlled by frequency converter and given by computer. The upper and lower surfaces of the glass are evenly heated, which greatly improves the product quality, makes the temperature control accurate, and ensures that the temperature in the furnace is evenly heated;
- The furnace lining adopts special materials, which effectively controls the generation of various particles and the impact on the quality of the glass;
- Belt drive greatly improves the synchronism of the track. It is used together with the ceramic Kundao produced by international famous companies to improve the product quality.
Note:

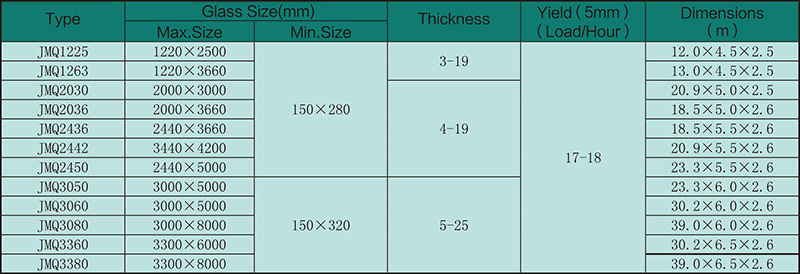

The above are only the normal models produced by our company. If there are special needs, they can be made according to the requirements.
